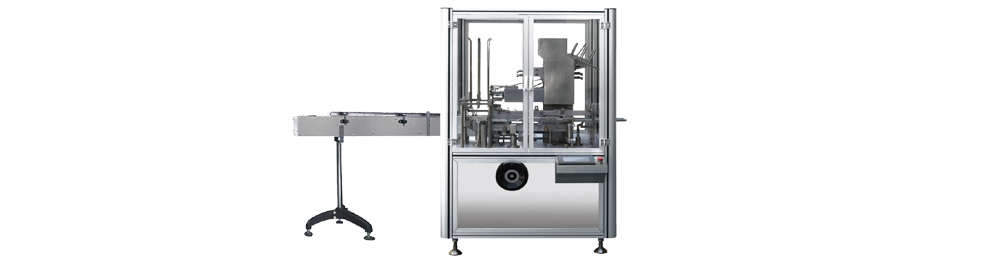

ZLZ120自動裝盒機
ZLZ120 AUTO BOXING MACHINE
 簡介
該設備是集光、電、氣、機一體化的高科技產品。從而使設備性能和工作效率得到了大幅度提高，實現快速裝盒要求，且在快速運行時仍保持平穩、可靠狀態。

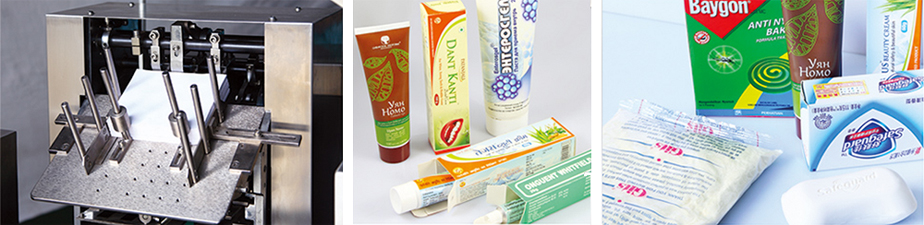

該機型適用于軟膏類物品（牙膏、藥膏）及軟包裝類物品的自動裝盒。其工作過程為牙膏或物品的傳送；藥品說明書的傳送（可進行1至4折的自動折疊）；紙盒自動成形與傳送，將物料連帶折好的說明書同時裝入紙盒內；并自動完成打批號、兩端紙舌封口等繁雜額封裝過程（可配熱熔膠機）。
Brief introduction
The device is set optical, electrical, gas, the integration of high-tech products. So that the device performance and work efficiency has been greatly improved, enabling fast replacing cartridges, and a quick run-time remains stable and reliable state.
This model is for ointment such items (toothpaste, creams and soft packaging the auto replace cartridge. The process of toothpaste or the delivery of the statement of drug delivery (can be 1 to 4 fold, fold the paper tray automatically; the automatic forming and delivery of material and several Fold the sheet into the tray at the same time; and automate a lot, both ends of the tabs on the paper flaps are cumbersome for the encapsulation process (available with hot melt glue machine).
- 特點
PLC自動控制系統、變頻調速，電器元件均采用國際知名品牌；
采用人機界面操作系統；
機械過載自動停機；
無包裝物不下盒，節省包材；
自動剔除缺包裝物和說明書的紙盒；
故障顯示、報警和成品計數；
性能穩定、操作簡單易懂。
Features
PLC automatic control system, variable frequency speed regulating, electrical components are made with international brands.
The use of the human machine interface to the operating system.
Mechanical Overload the automatic shut-down.
There is no packaging is not the case, save the package material.
Is automatically removed from the packaging and instruction manual.
Failure to display, alarm and finished counting.
Stable performance, operation is simple and easy to understand.
- 適用范圍
適用于軟膏類物品（牙膏、藥膏）及軟包裝類物品的自動裝盒。
Application
Apply ointments such items (toothpaste, creams and soft packaging the auto replace cartridge.
- 技術參數 Specifications
| 裝盒速度 Replace the speed |
30-120盒/分 |
| 紙盒 Carton |
質量要求Quality requirements |
250-350g/㎡【視紙盒大小而定】 |
| 尺寸范圍Size（L×W×H） |
（45-155）mm×（15-85）mm×（14-55）mm |
| 說明書 Instruction manual |
質量要求Quality requirements |
60-70g/㎡ |
未折疊尺寸范圍No fold size（L×W） |
（80-250）㎜×（90-170）㎜ |
| 折疊范圍Fold size（L×W） |
【1-4】折(Fold) |
| 壓縮空氣 Compressed air |
工作壓力Working Pressure |
≥0.6Mpa |
| 耗氣量 Air consumption |
120-160L/Min. |
| 電源 Voltage |
380V/50Hz |
| 主電機功率 Power |
1.5kW |
| 外形尺寸（長×寬×高）Size (L×W×H)?????? |
2400×990×1650㎜ |
| 重量 Weight |
1100kg |
|
