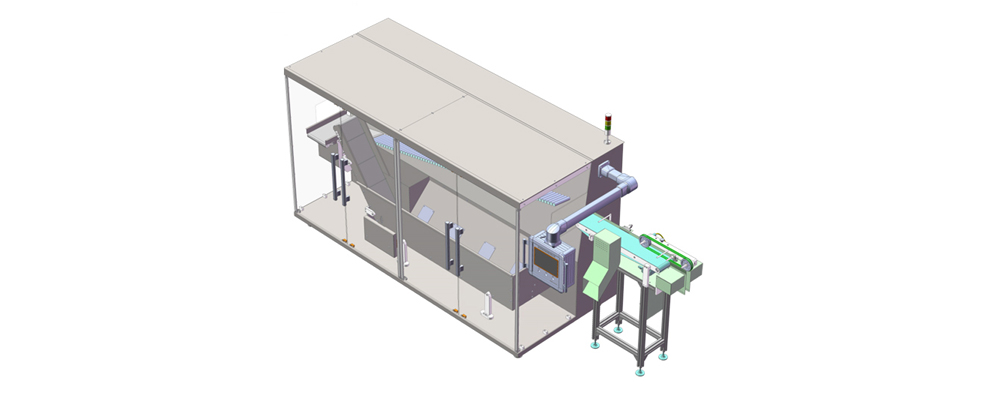

LD260高速理袋機
LD260 HIGH SPEED BAG SORTING MACHINE
- 特點
無規則物料整理,按需求排序輸出;
全伺服智能控制低、中、高速輥,整理穩定;
廢料剔除自動收集,連續整理;
整機全密封,符合GMP要求;
PLC配合人機界面,操作簡單方便;
智能光電檢測,保證穩定輸出;
外罩材質為304不銹鋼、有機玻璃,耐腐蝕,易清潔;
節省人力,自動輸出至后序裝盒機,可以與后序裝盒機、枕包機等連接成自動生產線。
Features
Irregular material sorting, sorting output according to demand.
Full servo intelligent control of low, medium and high speed rollers, stable finishing.
Automatic collection of waste removal, continuous sorting.
The whole machine is fully sealed and meets GMP requirements.
PLC with man-machine interface, easy to operate.
Intelligent photoelectric detection to ensure stable output.
The outer cover is made of 304 stainless steel, plexiglass, corrosion-resistant and easy to clean.
Save manpower, automatically output to the subsequent cartoning machine, and can be connected with the subsequent cartoning machine, pillow wrapping machine, etc. to form an automatic production line
- 適用范圍
適用于四邊封,三邊封,背封,連袋整理。
Application
It is suitable for four-side sealing, three-side sealing, back sealing, and even bag finishing.
- 技術參數 Specifications
包裝物料packaging material |
四邊封,三邊封,背封小袋; |
理論輸出速度Theoretical output speed |
260袋/分鐘(取決于物料尺寸) |
允許包裝范圍allowable packaging |
最小20×50mm,最大130×200mm。 |
機器總功率Power |
9kW |
電壓 Voltage |
380V/50Hz |
外形尺寸(長×寬×高)SDimensions ize (L×W×H)? |
3590×1340×l755mm |
重量 Weight |
1500kg |
|
