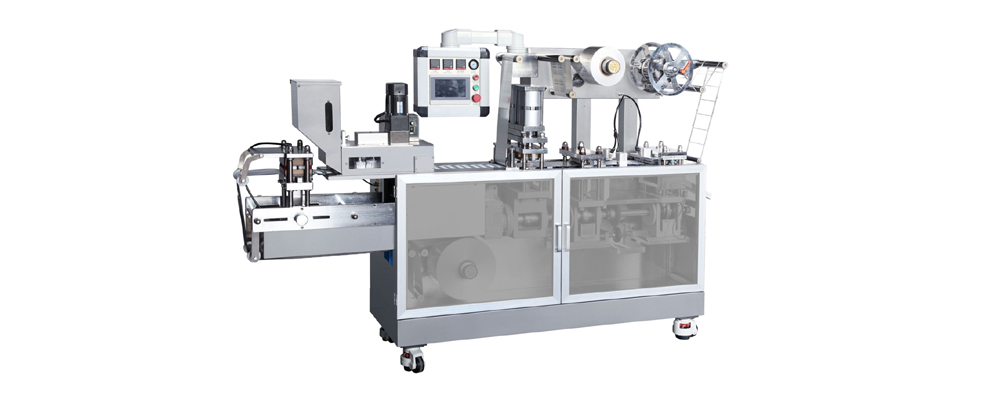

DPP150B鋁鋁、鋁塑泡罩包裝機
DPP150B aluminum aluminum, aluminum plastic blister packaging machine
- 特點
變頻無級調速,沖裁頻率:鋁塑6~50次/分鐘,鋁鋁6~25次/分鐘;
行程可調,調節范圍40~140mm,調節方便,同步準確
采用板式模具,正壓成型,具有打批號、壓痕切線、鋁箔/塑料自動輸送、斷片或完片能自動停機報警等功能;
圓形藥片充填率可達到99.5%以上,膠囊充填率可達97%以上。加料器有除塵接口,消除加料過程中所形成的粉塵問題;
采用對版吻合加熱,將加熱器的熱能損失減至最少,加熱器的所需溫度大為降低;
該機體積小、重量輕、結構緊湊、操作簡單、維修極為方便;
Features
Frequency conversion stepless speed regulation, punching frequency: aluminum-plastic 6~50 times/min, aluminum-aluminum 6~25 times/min.
The stroke is adjustable, the adjustment range is 40~140mm, the adjustment is convenient, and the synchronization is accurate.
Adopt plate mold, positive pressure forming, with batch number, indentation and tangent, automatic aluminum foil/plastic conveying, automatic shutdown alarm when broken or finished film, etc.
The filling rate of round tablets can reach more than 99.5%, and the filling rate of capsules can reach more than 97%. The feeder has a dust removal interface to eliminate the dust problem formed during the feeding process.
Adopt matching heating to minimize the heat loss of the heater and greatly reduce the required temperature of the heater.
The machine is small in size, light in weight, compact in structure, simple in operation and extremely convenient in maintenance.
- 適用范圍
適用于制藥、保健品、食品、化妝品、醫療器械等行業的膠囊、片劑、蜜丸、糖果、膏(液)體、一次性注射器及異性物的鋁塑/鋁鋁泡罩密封
包裝。
Application
Aluminum-plastic/aluminum-aluminum blister sealing packaging for capsules, tablets, honeydew, candy, paste (liquid), disposable syringes and foreign objects in the pharmaceutical, health products, food, cosmetics, medical equipment and other industries.
- 技術參數 Specifications
沖裁頻率punching frequency |
鋁塑6~50次/分鐘,鋁鋁6~25次/分鐘 |
行程可調范圍Stroke adjustable range |
40~140mm(可調) |
最大成型面積Maximum molding area |
130×130mm |
最大成型深度Maximum forming depth |
PVC :25mm? 成型鋁:14mm |
主電機功率main motor power |
0.75kw |
藥用PVC規格Medicinal PVC Specifications |
0.25~0.50×150mm |
成型鋁Formed aluminum |
0.085~0.1×150mm |
外形尺寸Dimensions |
長×寬×高2300×560×1410 |
整機重量Total Weight |
750kg |
|
